Kodak 10‘’ No WiFi Digital Picture Frame with Remote Control 1028C

1. Introduction

This manual provides detailed instructions for the KODAK 10.1 Inch Digital Picture Frame, Model YWTN-1028C. This device is designed to display your digital photos and videos with ease, utilizing SD cards and USB drives for media input. It does not require a WiFi connection or a dedicated application for operation.

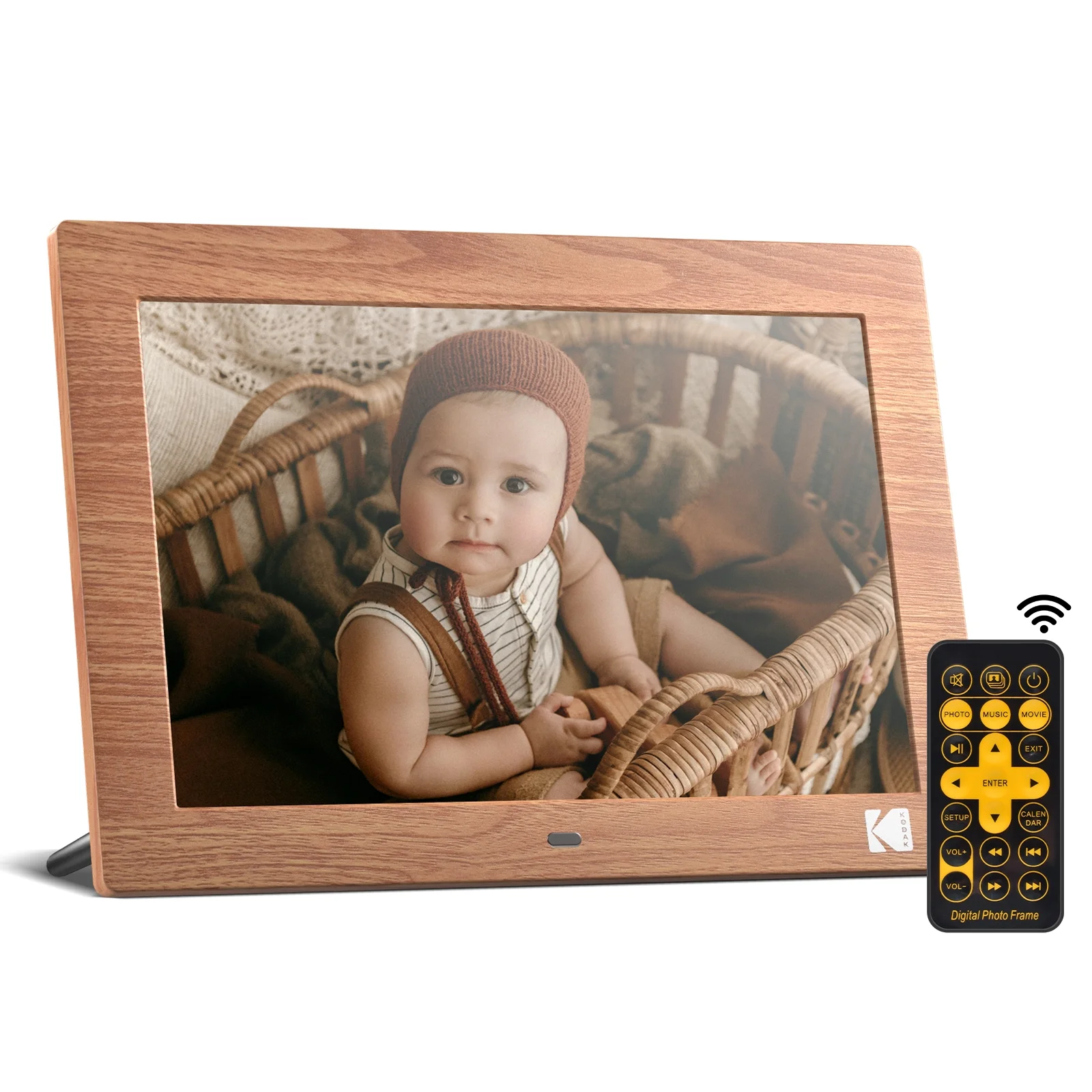

Image 1.1: The KODAK 10.1 Inch Digital Picture Frame, showcasing its design and included remote control.

2. Product Overview

2.1 Key Features

• 10.1-inch HD IPS Display: Features a 1280x800 resolution for clear and vibrant image display.
• No WiFi Required: Operates independently using SD cards and USB drives.
• Remote Control: Provides convenient navigation and setting adjustments.
• Auto-Rotate Function: Automatically adjusts photo orientation for optimal viewing.
• Wall Mountable: Designed for flexible placement options.
• Programmable Auto On/Off: Allows scheduling power cycles for energy efficiency.
• Multi-Functionality: Supports photo slideshows, video playback, music playback, alarm clock, and calendar display.

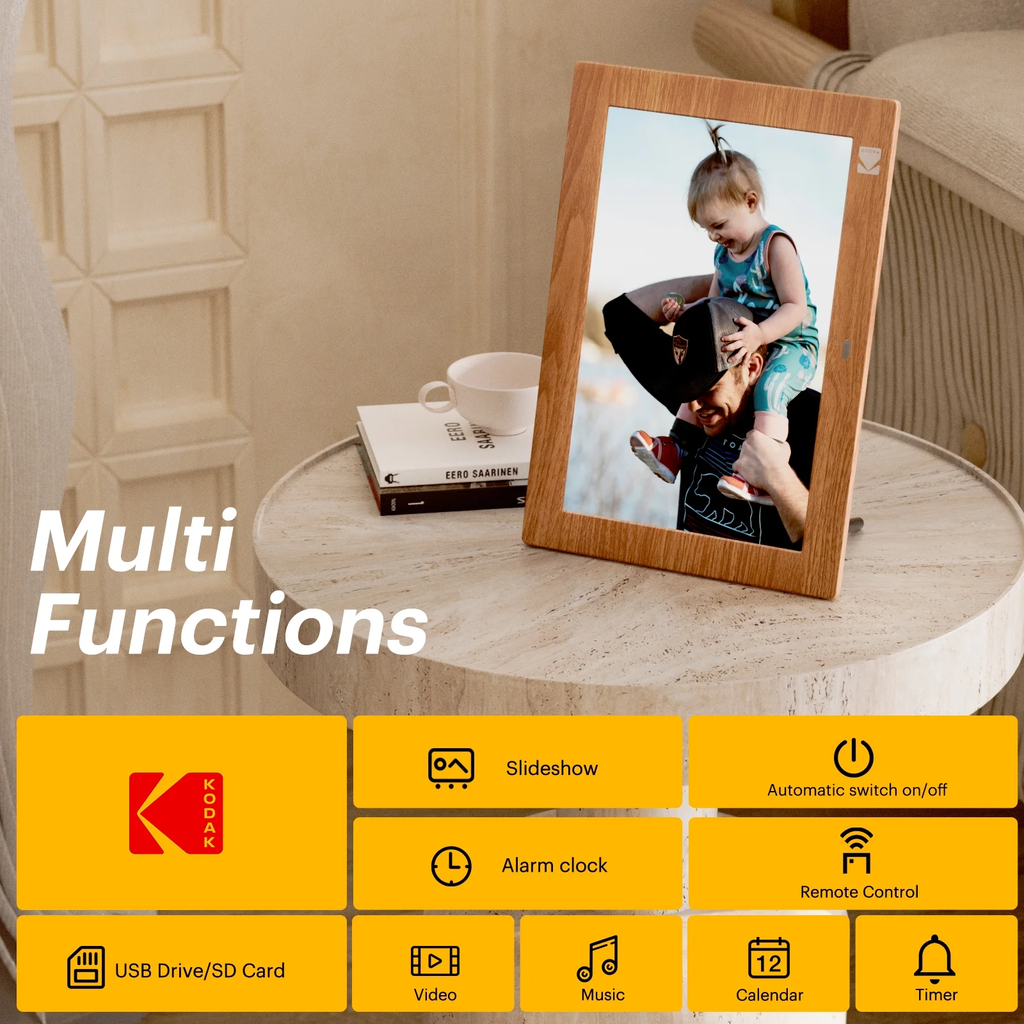

Image 2.1: Overview of the KODAK 10 Inch Digital Photo Frame's core functionalities, including photo, video, and music playback, along with calendar, alarm clock, and timer features.

2.2 Package Contents

Verify that all items are present in the package:

• KODAK 10.1 Inch Digital Picture Frame
• Remote Control
• Photo Frame Holder (Stand)
• DC Power Cord (Adapter)
• Instruction Manual (this document)

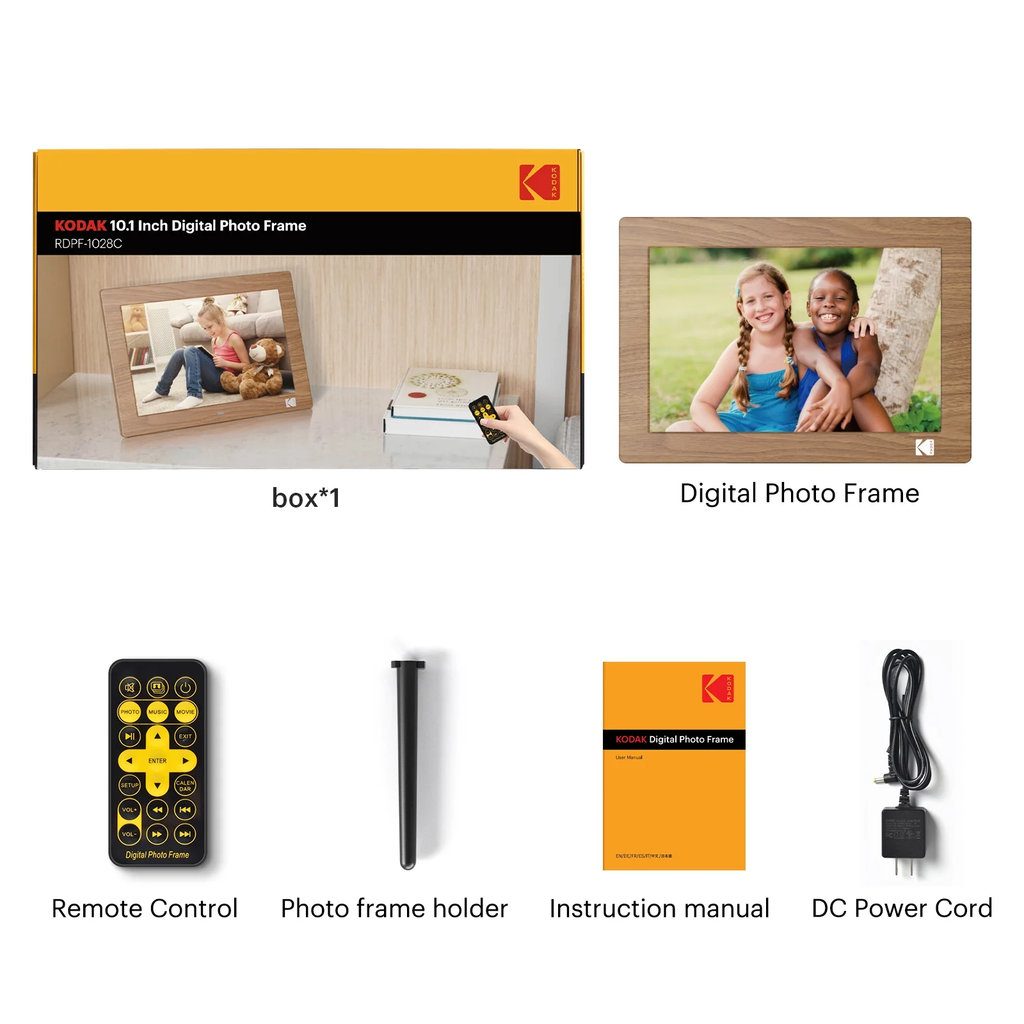

Image 2.2: All components included in the KODAK Digital Photo Frame package: the frame, remote control, photo frame holder, instruction manual, and DC power cord.

3. Setup

3.1 Powering On

1. Connect the DC Power Cord to the power input port on the back of the digital picture frame.
2. Plug the power adapter into a standard electrical outlet.
3. The frame will automatically power on or enter standby mode. Press the power button on the back of the frame or on the remote control if it does not power on automatically.

3.2 Inserting Media (SD Card / USB Drive)

The KODAK Digital Picture Frame supports SD cards and USB flash drives for media playback.

1. Locate the SD card slot and USB port on the side or back of the frame.
2. Insert your SD card or USB flash drive containing photos and videos into the corresponding slot/port. Ensure the media is inserted correctly.
3. The frame will typically detect the new media and prompt you to view its contents or start a slideshow.

Image 3.1: Illustration demonstrating the simple plug-and-play functionality by inserting an SD card or USB drive into the frame's designated slots.

3.3 Positioning the Frame

You can place the frame on a flat surface using the included photo frame holder or mount it on a wall.

• Desktop Placement: Insert the photo frame holder into the designated slot on the back of the frame. Adjust the angle as desired.
• Wall Mounting: Use the wall-mounting holes on the back of the frame. Ensure appropriate wall anchors and screws are used (not included) to securely mount the frame.

4. Operating Instructions

4.1 Using the Remote Control

The remote control allows you to navigate menus, adjust settings, and control media playback.

Image 4.1: A user operating the KODAK Digital Photo Frame with the included remote control, highlighting its ease of use.

Key remote control functions:

• Power Button: Turns the frame on or off.
• Navigation Buttons (Up/Down/Left/Right): Used to move through menus and select options.
• ENTER Button: Confirms selections.
• MENU Button: Accesses the main menu.
• EXIT Button: Returns to the previous screen or exits a menu.
• PLAY/PAUSE Button: Starts or pauses media playback.
• Volume Buttons: Adjusts audio volume.
• PHOTO/VIDEO/MUSIC Buttons: Directly switches to photo, video, or music playback modes.

4.2 Photo Slideshows

Once media is inserted, the frame will typically start a photo slideshow automatically. You can customize slideshow settings via the main menu, including transition effects, display time, and playback order.

4.3 Video and Music Playback

Navigate to the Video or Music section from the main menu using the remote control. Select the desired file to begin playback. Use the remote's playback controls (Play/Pause, Next, Previous, Volume) to manage media.

4.4 Auto-Rotate Feature

The frame automatically detects the orientation of your photos and adjusts them for proper display, whether the frame is positioned horizontally or vertically.

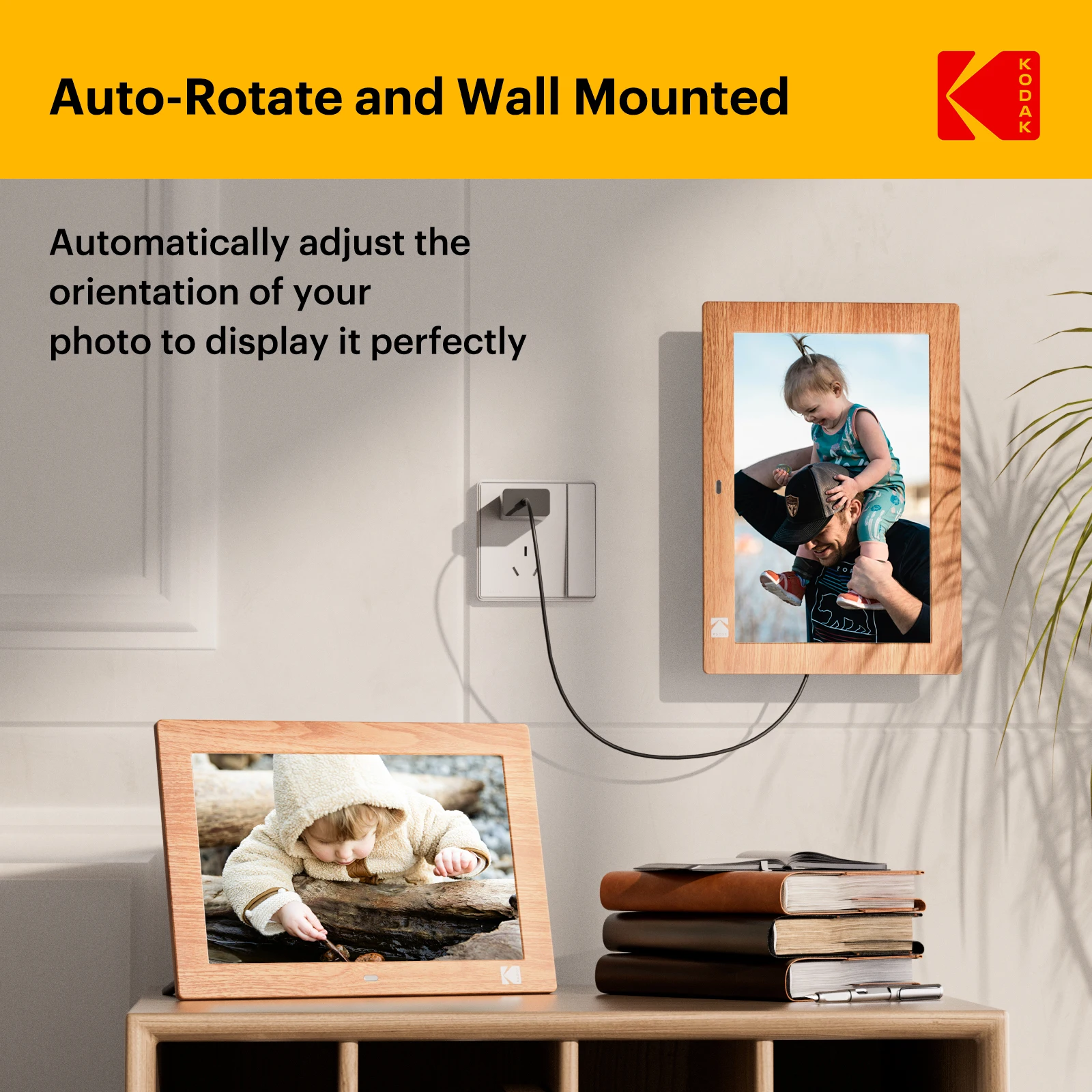

Image 4.2: The auto-rotate feature in action, showing the frame seamlessly adjusting image orientation when placed horizontally or vertically, including wall-mounted.

4.5 Programmable Auto On/Off

To conserve energy, you can set specific times for the frame to automatically power on and off.

1. Access the 'Settings' menu using the remote control.
2. Navigate to 'Auto On/Off' or 'Timer' settings.
3. Set your desired power-on time and power-off time.
4. Save the settings.

Image 4.3: Visual representation of the automatic power on/off function, illustrating the frame turning on at 8:00 AM and off at 10:00 PM.

5. Maintenance

To ensure the longevity and optimal performance of your digital picture frame, follow these maintenance guidelines:

• Cleaning the Screen: Use a soft, lint-free cloth specifically designed for electronics screens. Do not use abrasive cleaners or sprays directly on the screen.
• Cleaning the Frame: Wipe the frame's exterior with a soft, dry cloth. Avoid using harsh chemicals.
• Storage: When not in use for extended periods, store the frame in a cool, dry place, away from direct sunlight and extreme temperatures.
• Power Disconnection: Always disconnect the power adapter from the wall outlet before cleaning or moving the frame.

6. Troubleshooting

If you encounter issues with your KODAK Digital Picture Frame, refer to the following common problems and solutions:

7. Specifications

Detailed technical specifications for the KODAK 10.1 Inch Digital Picture Frame (Model YWTN-1028C):

• Screen Size: 10.1 Inches
• Resolution: 1280 x 800 (IPS HD)
• Aspect Ratio: 16:10
• Viewing Angle: 178°
• Product Dimensions: 8 x 10 x 0.99 inches
• Item Weight: 2.23 pounds
• Model Number: YWTN-1028C
• Compatible Devices: Remote Control, SD Card, USB Flash Drive
• Power Source: DC Power Cord

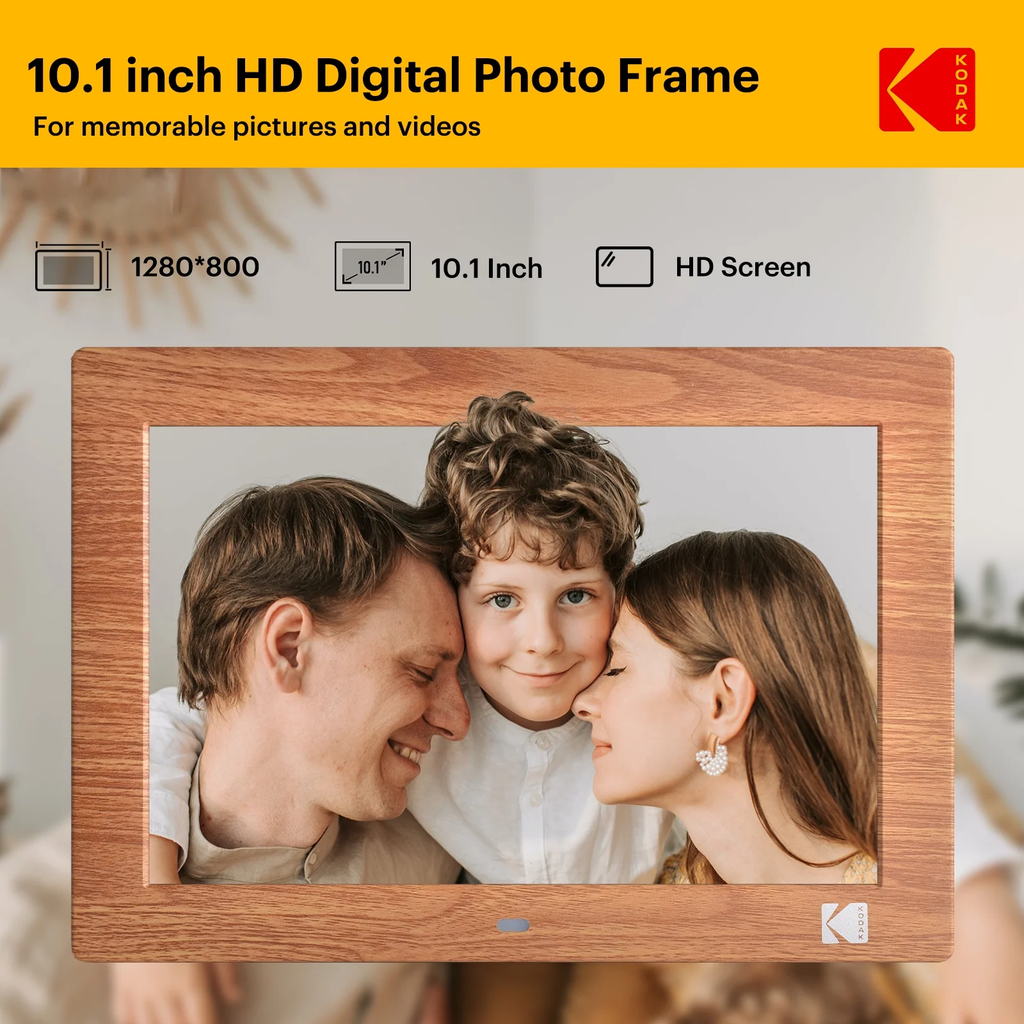

Image 7.1: Key display specifications of the KODAK Digital Photo Frame, including its 10.1-inch size, 1280x800 pixel resolution, 16:10 aspect ratio, and 178° viewing angle.

8. Warranty and Support

KODAK provides a 12-month service warranty for this product. For any issues or assistance, please contact KODAK customer support. Lifetime friendly support is available to address your concerns.

Please refer to the contact information provided with your product packaging or visit the official KODAK support website for the most up-to-date contact details.
